| Model |
|

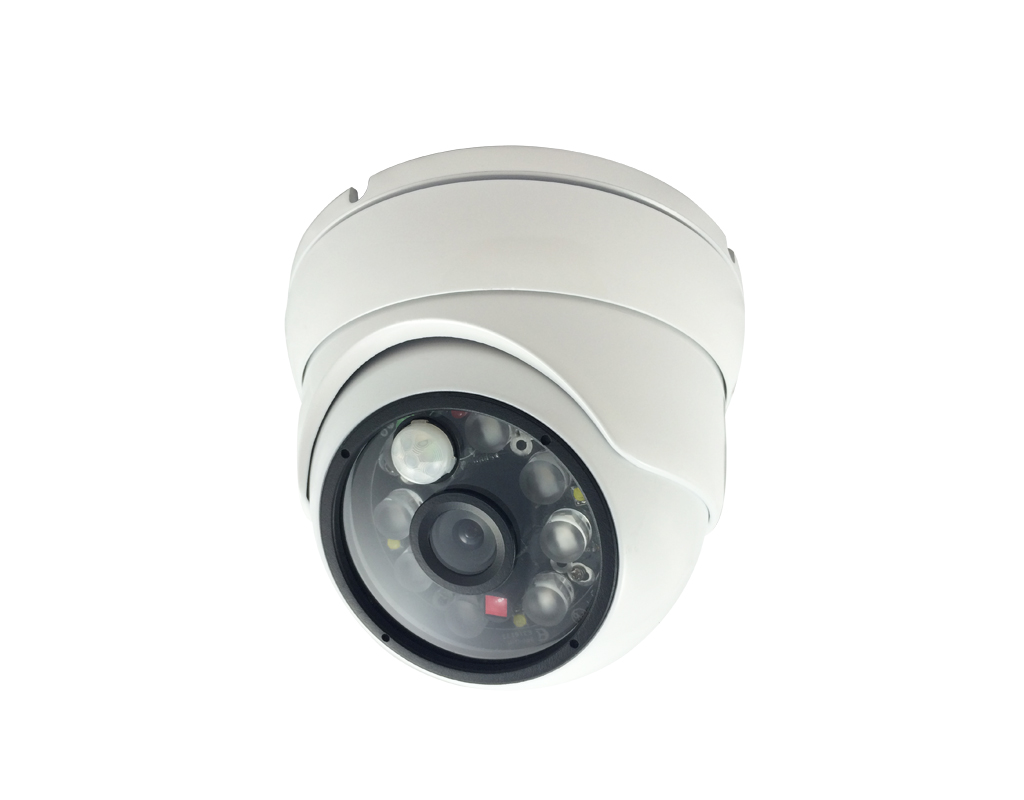

HS-AHD-D002C1
|
|
Pick up device
|
|
1/3” SONY CMOS : 1.3 Mega
|
|
Resolution
|
|
1280(H) x 720(V) @ 30FPS
|
|
Video Output
|
|
AHD
|
|
Synchronization
|
|
Internal
|
|
Scanning System
|
|
2:1 Interlace
|
|
S/N Ratio
|
|
More than 55 dB(AGC OFF)
|
|
Video Output
|
|
1.0 Vp-p / 75 ohm composite
|
|
Lens Type
|
|
Board Lens : 6mm
|
|
Electronic Shutter
|
|
Auto 1 / 60 (1 / 50) ~ 1 / 50,000 sec / FLK
|
|
Min. Illumination
|
|
0.04Lux ( F2.0 , AGC ON)
|
|
IR Distance
|
|
40M
|
|
IR Cut
|
|
YES
|
|
White Light Distance
|
|
<30M
|
|
White Light Trigger
|
|
8Lux
|
|
Motion Detect Range
|
|
3M
|
|
Motion Detect
|
|
Light change / Picture change
|
|
PIR Detect Range
|
|
7M
|
|
PIR Detect
|
|
Temperature
|
|
3-Axis
|
|
P-T-T (Pan-Tilt-Twist)
|
|
Coaxial Cable Transmition Distance
|
|
300 / 500 M
|
|
Twisted Cable Transmition
|
|
200 M
|
|
Power Source
|
|
DC12V ± 10% / 1A
|
|
Current
|
|
White LED : 280mA (max) IR LED : 240mA (max)
|
|
Power Consumption
|
|
White LED : 3.36W (max) IR LED : 2.88W (max)
|
|
Operating Temperature
|
|
-10℃ ~ 50℃ (14℉ ~ 122℉ )
|
|
Dimension
|
|
119(Diameter) x 85(D)mm
|
|
Weatherproof
|
|
IP66
|
